Control
System |
Line
Sine-Wave Modulation PWM - VF Constant Torque or VF Reduced Torque |
|
Output
Frequency Range |
0.5
to 360 Hz |
|
Frequency
Resolution |
Digital
0.1 Hz - Analogue setting Max. Frequency divided by 1000 |
|
Starting
Torque |
More
than 100% (when torque boost has been set) |
|
Braking |
20
-100% (capacitive feedback type) |
|
DC
Injection Braking |
Programmable
Power, Time & Frequency settings |
|
Speed
Reference |
Digital,
0-10V (10K Ohm impedance), 4-20mA (250 Ohm impedance) |
|
Multi-stage
Speed |
16
Programmable Pre-sets |
|
Output
Voltage |
Auto
Voltage Regulator (AVR) |
|
Accel/Decel |
0.1-3000s
linear or S Curve - 2 selectable |
|
Input
Terminals |
5
Programmable from 14 selections |
|
Output
Terminals |
2
Programmable from 5 selections • Open Collector 27Vdc 50mA |
|
Alarm
Relay |
Change
over contact. |
|
Meter
Output |
Voltage
or Frequency Output of Speed or Load indication only. |
|
Protection |
15
functions inc- earth fault |
|
Trip
History |
Last
3 trips, total trip log |
|
PID
Control |
Programmable
PID function - 4-20mA / 0-10Vdc feedback. |
|
Enclosure |
1P20 |
|
International
Standards |
UL.
C-UL (CSA), CE and C-Tick - Complies with EMC & LV Directives. |
|
Model
Number |
Motor
Power |
Rated
Current |
Unit
Price |
|
Filter
Model |
Unit
Price |
|
200-240V
1/3ph input |
||||||
|

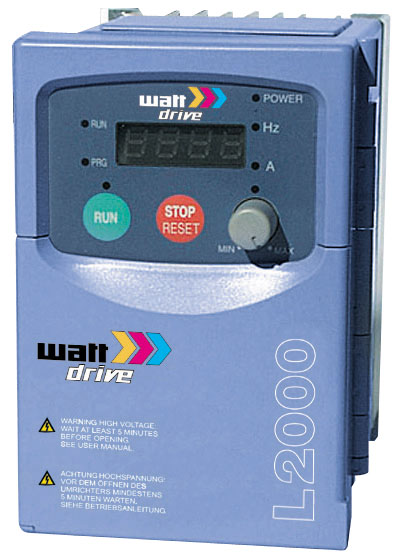

L2000
002 NFE |
0.2kW |
1.4A |
£129.00 |
FP 1PH 0.2/0.5V |
£24.00 |
|
|
L2000
004 NFE |
0.4kW |
2.6A |
£139.00 |
FP 1PH 0.2/0.5V |
£24.00 |
|
|
L2000
005 NFE |
0.55kW |
3.0A |
£150.00 |
FP 1PH 0.5L1.1V |
£28.00 |
|
|
L2000
007 NFE |
0.75kW |
4.0A |
£171.00 |
FP 1PH 0.5L1.1V |
£28.00 |
|
|
L2000
011 NFE |
1.1kW |
5.0A |
£202.00 |
FP 1PH 1.1L2.2 |
£36.00 |
|
|
L2000
015 NFE |
1.5kW |
7.1A |
£222.00 |
FP 1PH 1.1L2.2 |
£36.00 |
|
|
L2000
022 NFE |
2.2kW |
10A |
£274.00 |
FP 1PH 1.1L2.2 |
£36.00 |
|
|
380-400V
3ph input |
||||||
|
L2000
004 HFE |
0.4kW |
1.5A |
£263.00 |
FP 3PH0.4/2.2V |
£48.00 |
|
|
L2000
007 HFE |
0.75kW |
2.5A |
£294.00 |
FP 3PH0.4/2.2V |
£48.00 |
|
|
L2000
015 HFE |
1.5kW |
3.8A |
£319.00 |
FP 3PH0.4/2.2V |
£48.00 |
|
|
L2000
022 HFE |
2.2kW |
5.5A |
£367.00 |
FP 3PH2.2L4.0 |
£60.00 |
|
|
L2000
030 HFE |
3.0kW |
7.8A |
£417.00 |
FP 3PH2.2L4.0 |
£60.00 |
|
|
L2000
040 HFE |
4.0kW |
8.6A |
£445.00 |
FP 3PH2.2L4.0 |
£60.00 |
|
|
L2000
055 HFE |
5.5kW |
13.0A |
£618.00 |
FP 3PH5.5/7.5 |
£79.00 |
|
|
L2000
075 HFE |
7.5kW |
16.0A |
£743.00 |
FP 3PH5.5/7.5 |
£79.00 |
|
|
|||||||||
|
