Control
System |
Line
to line Sinewave PWM |
|
Output
Frequency |
0.1
to 400Hz |
|
Frequency
Resolution |
Digital
+/- 0.01Hz maximum frequency - Analogue +/- 0.2% |
|
Starting
Torque |
120%
for 30 seconds and 150% for 0.5 seconds |
|
Braking |
Transistor
included in 11& 15 sizes - External resistor required |
|
DC
Injection Braking |
Programmable
power, time & frequency at Start and Stop |
|
Speed
Reference |
Digital
Operator, 0-10Vdc, -10 to +10Vdc, 4-20mA, Potentiometer, RS485
Communications |
|
Multi-stage
Speed |
16
Programmable Per-sets |
|
Output
Voltage |
Same
as rated input + Auto Voltage Regulator (AVR) |
|
Accel/Decel |
0.01-3600s
linear or S Curve - 2 selectable |
|
Input
Terminals |
6
total - 5 Programmable from 44 selections |
|
Output
Terminals |
2
Programmable from 21 selections - Relay volt free contact |
|
Alarm
Relay |
Change
over contact - Programmable with 21 selections |
|
Meter
Output |
Analogue
Voltage or Frequency Output for Speed or Load indications only |
|
Protection |
19
functions inc. earth fault |
|
Trip
History |
Last
3 trips, total trip log |
|
PID
Control |
Programmable
PID function - 4-20mA/0-10Vdc feedback |
|
Enclosure |
IP20 |
|
International
Standards |
UL,
C-UL(CSA), CE and C-Tick - Complies with EMC & LV Directives |
|
Model Number |
Motor
Power |
Rated
Current |
Unit
Price |
|
Filter Footprint |
Unit
Price |
Filter Book Case & Block | Unit Price |
|
380-480V 3ph |
||||||||
|

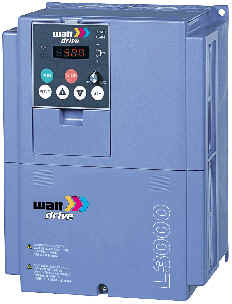

L3000 110 HFE |
11kW |
22A |
£878.00 |
|
FP 3PH 7.5V15L | £110.00 | BK 3PH 11 | £85.00 |
|
L3000 150 HFE |
15kW |
29A |
£1079.00 |
FP 3PH 7.5V15L | £110.00 | BK 3PH 15 | £98.00 | |
|
L3000 185 HFE |
18.5kW |
37A |
£1270.00 |
FP 3PH 7.5V30L | £140.00 | BK 3PH 18 | £121.00 | |
|
L3000 220 HFE |
22kW |
43A |
£1501.00 |
FP 3PH 7.5V30L | £140.00 | BK 3PH 22 | £130.00 | |
|
L3000 300 HFE |
30kW |
57A |
£1761.00 |
PF 3PH 15V30L | £140.00 | BK 3PH 30 | £140.00 | |
|
L3000 370 HFE |
37kW |
70A |
£2266.00 |
N/A | £0.00 | BK 3PH 37 | £172.00 | |
|
L3000 450 HFE |
45kW |
85A |
£2663.00 |
N/A | £0.00 | BK 3PH 45 | £198.00 | |
|
L3000 550 HFE |
55kW |
105A |
£2995.00 |
N/A | £0.00 | BK 3PH 55 | £267.00 | |
|
|||||||||
|
